Medsfab

7747 (MOTERISED) OPERATION TABLE FULL S.S.

ELECTRIC ACTUATOR MECHANISM

Features

Overall approx. dimension: 1900 mm L x 710 mm W (75” x 28”)
Height adjustment with electric actuator: 685 mm (MIN) to 940 mm (MAX)
Mattress platform dimensions: 1830 mm L x 560 mm W (72” x 22”)
Three section S.S. top and S.S. tubular construction
Middle section is available with “U” cut
Folding and removable foot section
Smooth actuator mechanism for Trendelenburg / Reverse Trendelenburg adjustments
Backrest elevation 0° TO 70° with 3–4 elevation angles
Pair of SS Lithotomy Rods with cushioned thigh rest (pair)
Padded Arm Boards (pair), Telescopic IV Pole, Sectional Mattress, Single Step Stool (MS)

Standard Accessories

SS Lithotomy Rods with cushioned thigh rest
Padded Arm Boards (pair)
Telescopic IV Pole
Sectional Mattress
Single Step Stool (MS)

Product Description

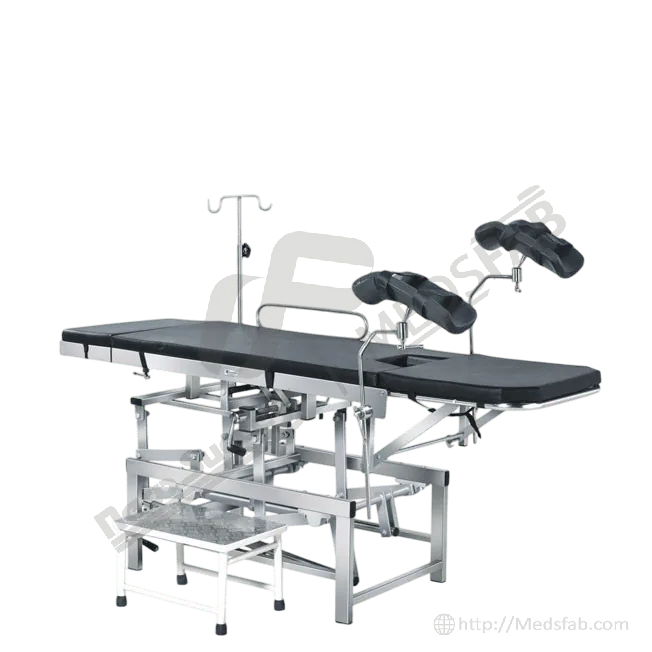

7747 Surgical / Lithotomy Table is a three-section table with electric actuator for height and Trendelenburg adjustments. It includes U-cut middle section, folding/removable foot section, SS Lithotomy rods with cushioned thigh rest, padded arm boards, telescopic IV pole, sectional mattress, and single step stool.

Specifications

Table Specifications

Overall Dimensions (L x W)	1900 x 710 mm
Height Adjustment	685 mm (MIN) to 940 mm (MAX) – Electric actuator
Mattress Platform (L x W)	1830 x 560 mm
Middle Section	Available with “U” cut
Foot Section	Folding / Removable
Standard Accessories	SS Lithotomy Rods, Padded Arm Boards, Telescopic IV Pole, Sectional Mattress, Single Step Stool
